SC860 All Makes&Multi Service Tool

CGSULIT will always dedicate to break through and explore the frontiers of technology, provide high quality obd scanner and innovative automotive solution. Fulfill customers' expectation is our top priority. SC860 all system diagnostic tool--your own auto repair shop


  • CGSULIT SC860 (1)
  • CGSULIT SC860 (2)
  • CGSULIT SC860 (3)
  • CGSULIT SC860 (4)
  • CGSULIT SC860 (5)
  • CGSULIT SC860 (6)
  1. 5 Popular reset services: Supports Oil/ EPB/ Throttle reset, ABS bleeding and SAS Calibration

  2. All System Diagnostic: Powertrain, Body, Chassis, ABS, SRS, Transmission, AC, DPF, IMMO, EPB, SAS, Light....allows to clear codes and turns off warning light on dashboard.

  3. 10 OBDII Functions: Read Codes, Clear Codes, Live Data, Freeze Frame Data, I/M Readiness, O2 Sensor Test, On-board Monitor Test, DTC Lookup, Vehicle Information, Component Test, Modules Present

  4. 80+ vehicle Coverage: Works on most of 1996-2021 US, Asia and European OBDII EOBD CAN protocol cars, SUVs, mini-vans, light-duty trucks.

  5. 17 Languages Support:

  6. English/ Chinese/ French/ German/ Spanish/ Japanese/ Russian/ Polish/ Nederlands/ Portuguese/ Korean/ Chinese Traditional/ Svenska/ Italian/ Thai Language/ Magyar/ Slovak

  7. Live Data Application: Shows live data of vehicle ECU, sensors, modules in text and graph formats. Support merges interactive live sensor graphs for easy and intuitive diagnosis.

  8. AUTOVIN & DTC Library: Get your VIN and vehicle info rapidly; DTC definition help technician quickly locate vehicle problem, and do your own repair.

  9. Intimate User Design: 4.3” color display with clearly arranged keypad, menu-driven operation, shortcuts, simple and easy to perform for all level users.

  10. Plug & Play: No need registration, batched with latest software ready to go out of box.

  11. Lifetime Free Update: Enable to update scanner to get up-to-date vehicle coverage and latest bug fixes. Newly added parameters and functionalities at your fingertips.

 Display

 4.3” TFT color display

 Working Temperature

 0 to 60 ℃ (32 to 140°F)

 Storage Temperature

 -20 to 70℃( -4 to  158°F)

 Power Supply

  8-18V vehicle power

 Supported Protocols

 J1859-41.6, J1850-10.4, ISO9141, KWP2000  (ISO 14230), and CAN (Control Area Network ISO11898)

 Package Dimension

 330*220*80 MM

 Product Dimension

 200*130*40 MM

 Weight

 1.8KG


  • SC860 Automotive Diagnostic Scanner User Manual-EN

    Download

  • Description
    1. 5 Popular reset services: Supports Oil/ EPB/ Throttle reset, ABS bleeding and SAS Calibration

    2. All System Diagnostic: Powertrain, Body, Chassis, ABS, SRS, Transmission, AC, DPF, IMMO, EPB, SAS, Light....allows to clear codes and turns off warning light on dashboard.

    3. 10 OBDII Functions: Read Codes, Clear Codes, Live Data, Freeze Frame Data, I/M Readiness, O2 Sensor Test, On-board Monitor Test, DTC Lookup, Vehicle Information, Component Test, Modules Present

    4. 80+ vehicle Coverage: Works on most of 1996-2021 US, Asia and European OBDII EOBD CAN protocol cars, SUVs, mini-vans, light-duty trucks.

    5. 17 Languages Support:

    6. English/ Chinese/ French/ German/ Spanish/ Japanese/ Russian/ Polish/ Nederlands/ Portuguese/ Korean/ Chinese Traditional/ Svenska/ Italian/ Thai Language/ Magyar/ Slovak

    7. Live Data Application: Shows live data of vehicle ECU, sensors, modules in text and graph formats. Support merges interactive live sensor graphs for easy and intuitive diagnosis.

    8. AUTOVIN & DTC Library: Get your VIN and vehicle info rapidly; DTC definition help technician quickly locate vehicle problem, and do your own repair.

    9. Intimate User Design: 4.3” color display with clearly arranged keypad, menu-driven operation, shortcuts, simple and easy to perform for all level users.

    10. Plug & Play: No need registration, batched with latest software ready to go out of box.

    11. Lifetime Free Update: Enable to update scanner to get up-to-date vehicle coverage and latest bug fixes. Newly added parameters and functionalities at your fingertips.

  • Specifications
  •  Display

     4.3” TFT color display

     Working Temperature

     0 to 60 ℃ (32 to 140°F)

     Storage Temperature

     -20 to 70℃( -4 to  158°F)

     Power Supply

      8-18V vehicle power

     Supported Protocols

     J1859-41.6, J1850-10.4, ISO9141, KWP2000  (ISO 14230), and CAN (Control Area Network ISO11898)

     Package Dimension

     330*220*80 MM

     Product Dimension

     200*130*40 MM

     Weight

     1.8KG


  • Downloads

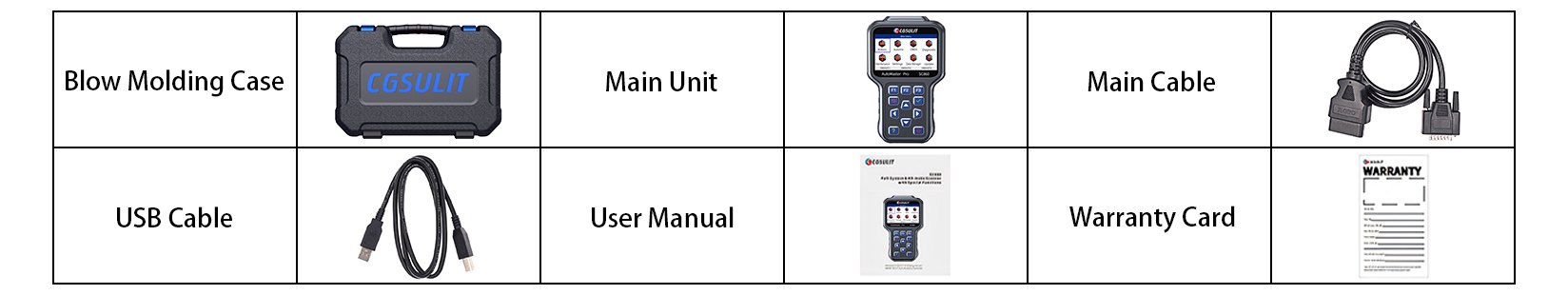

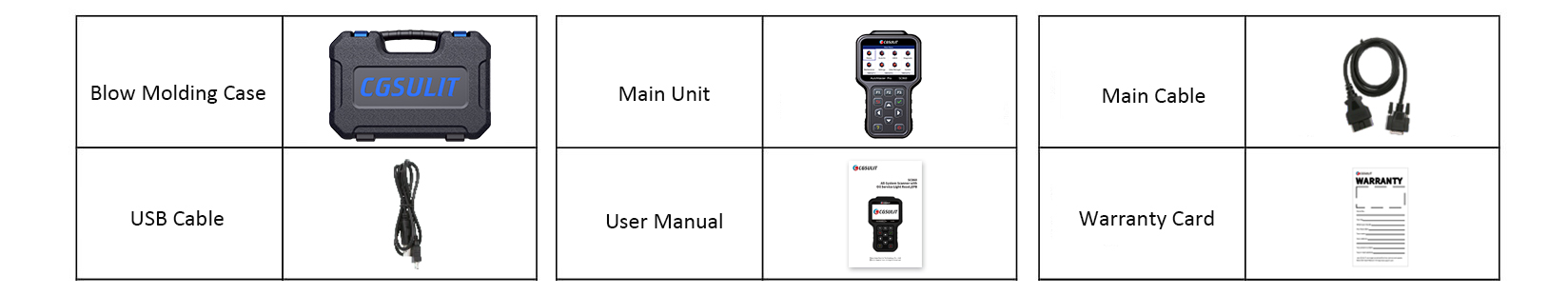

  • Accessories
